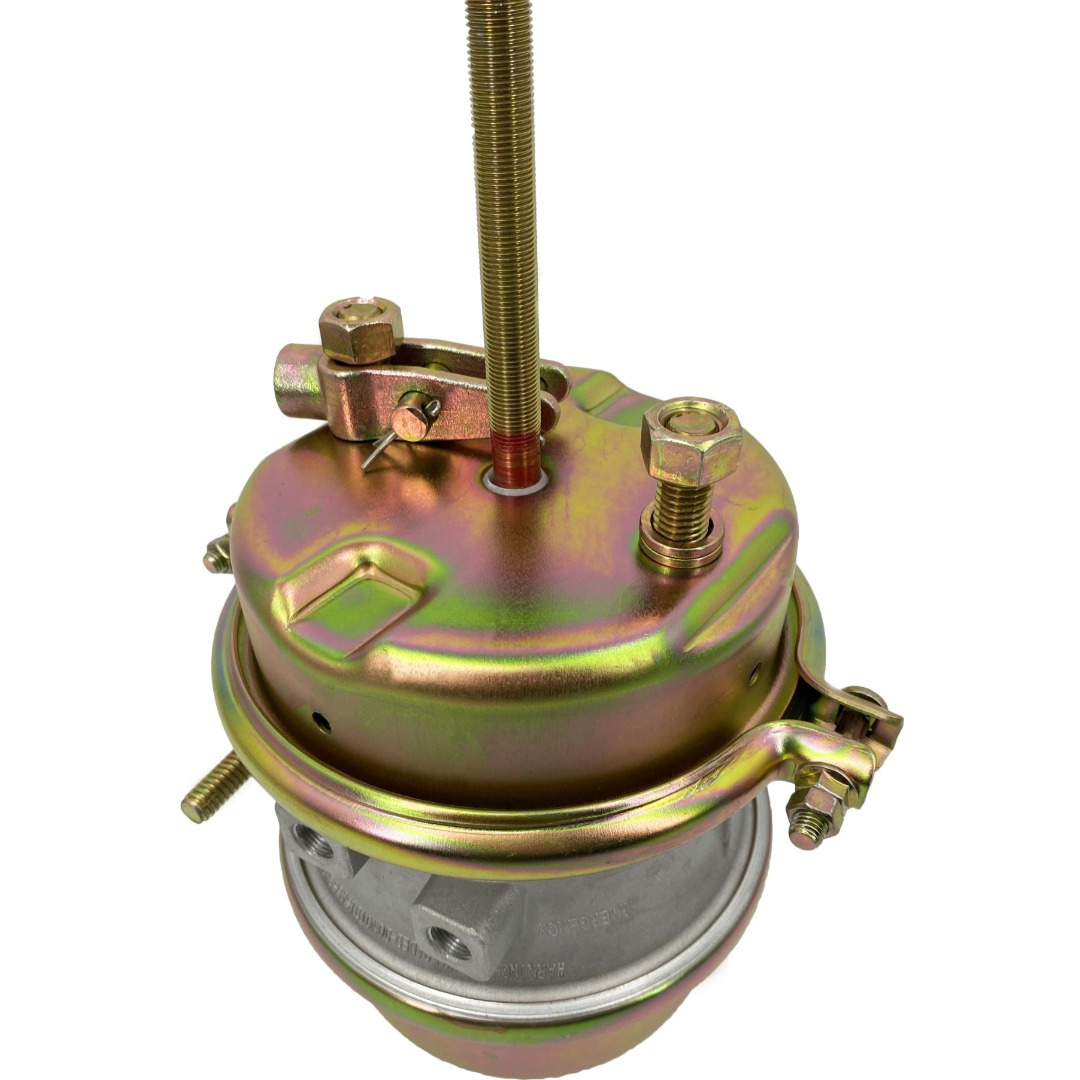

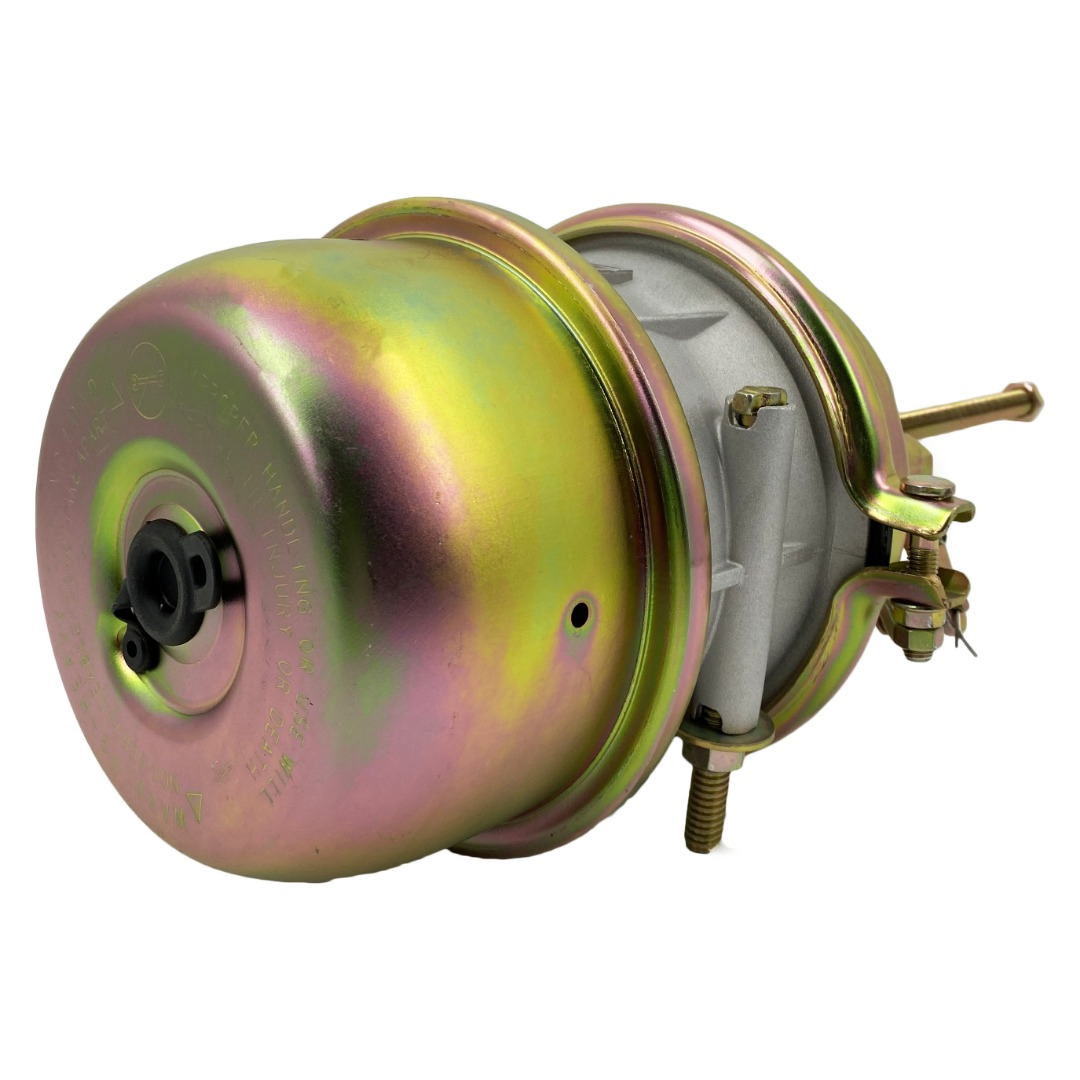

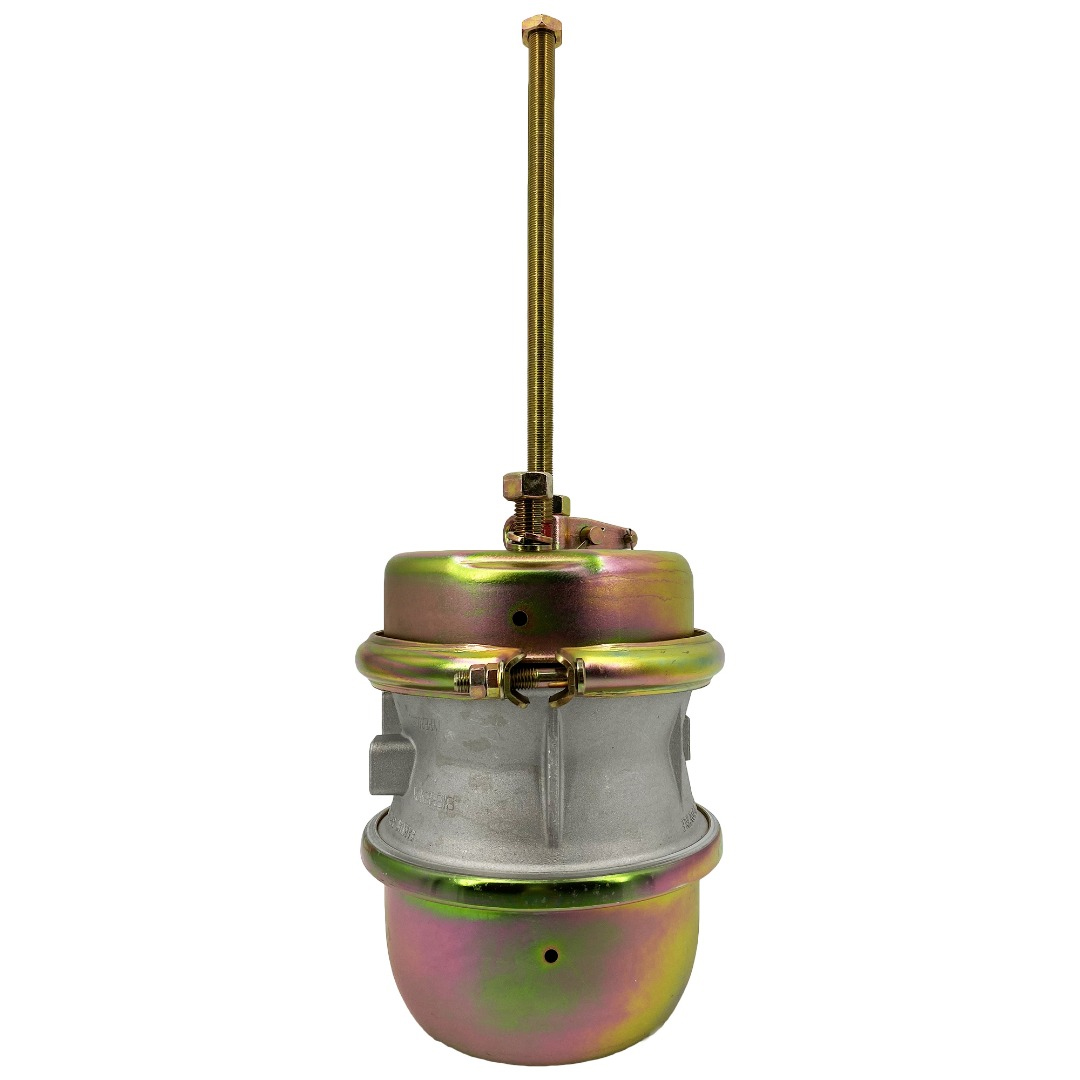

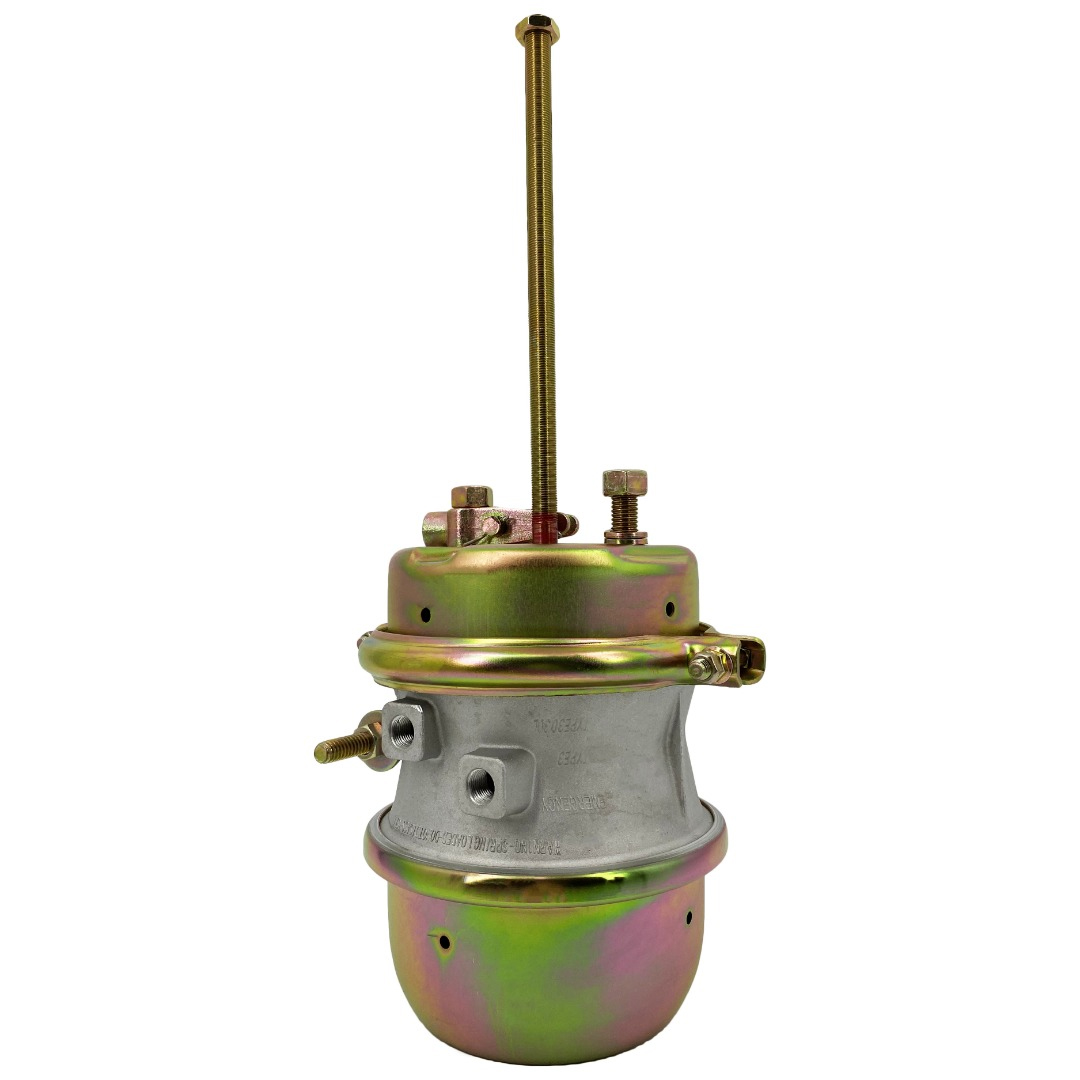

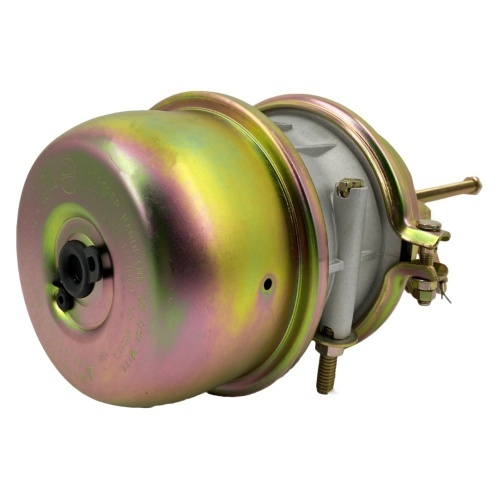

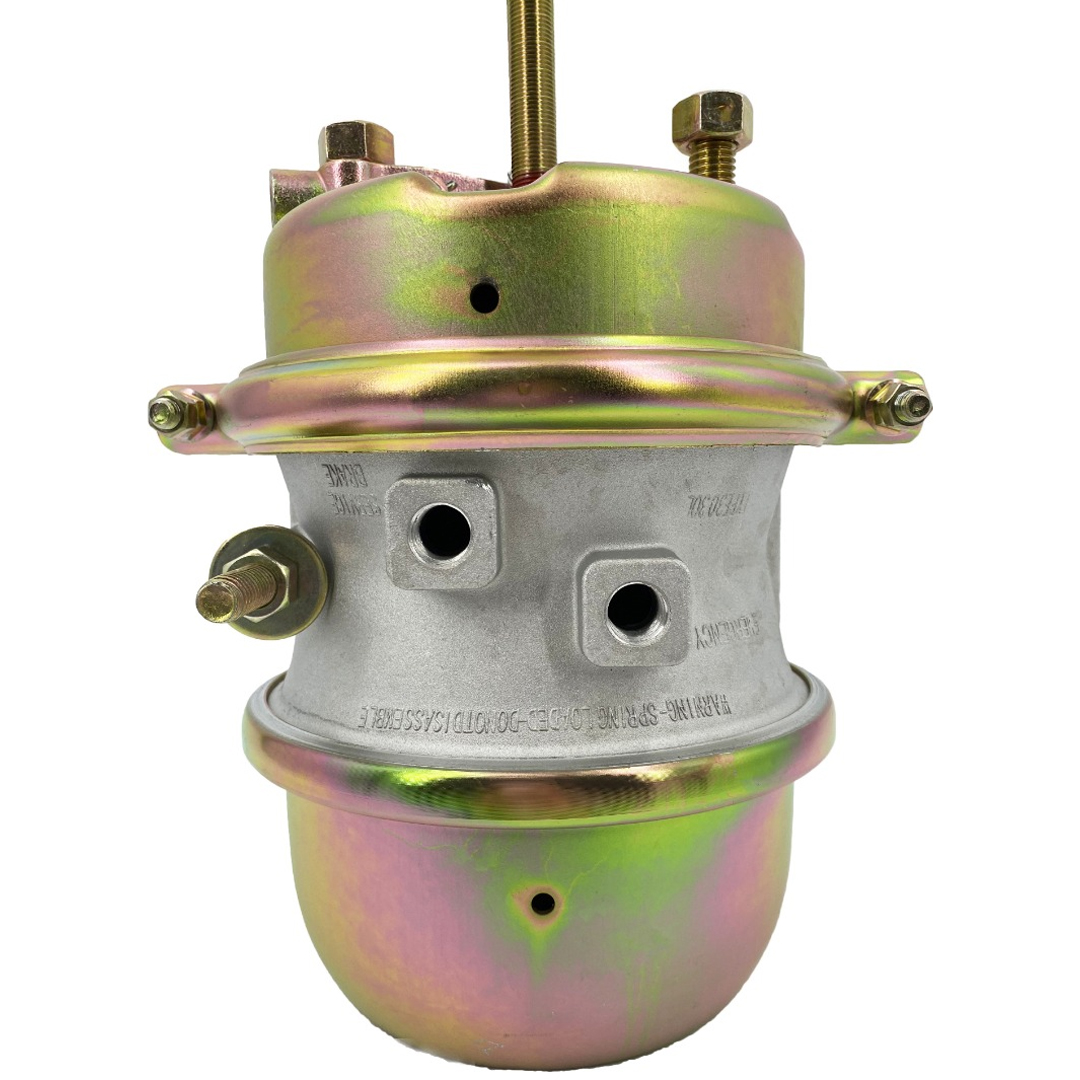

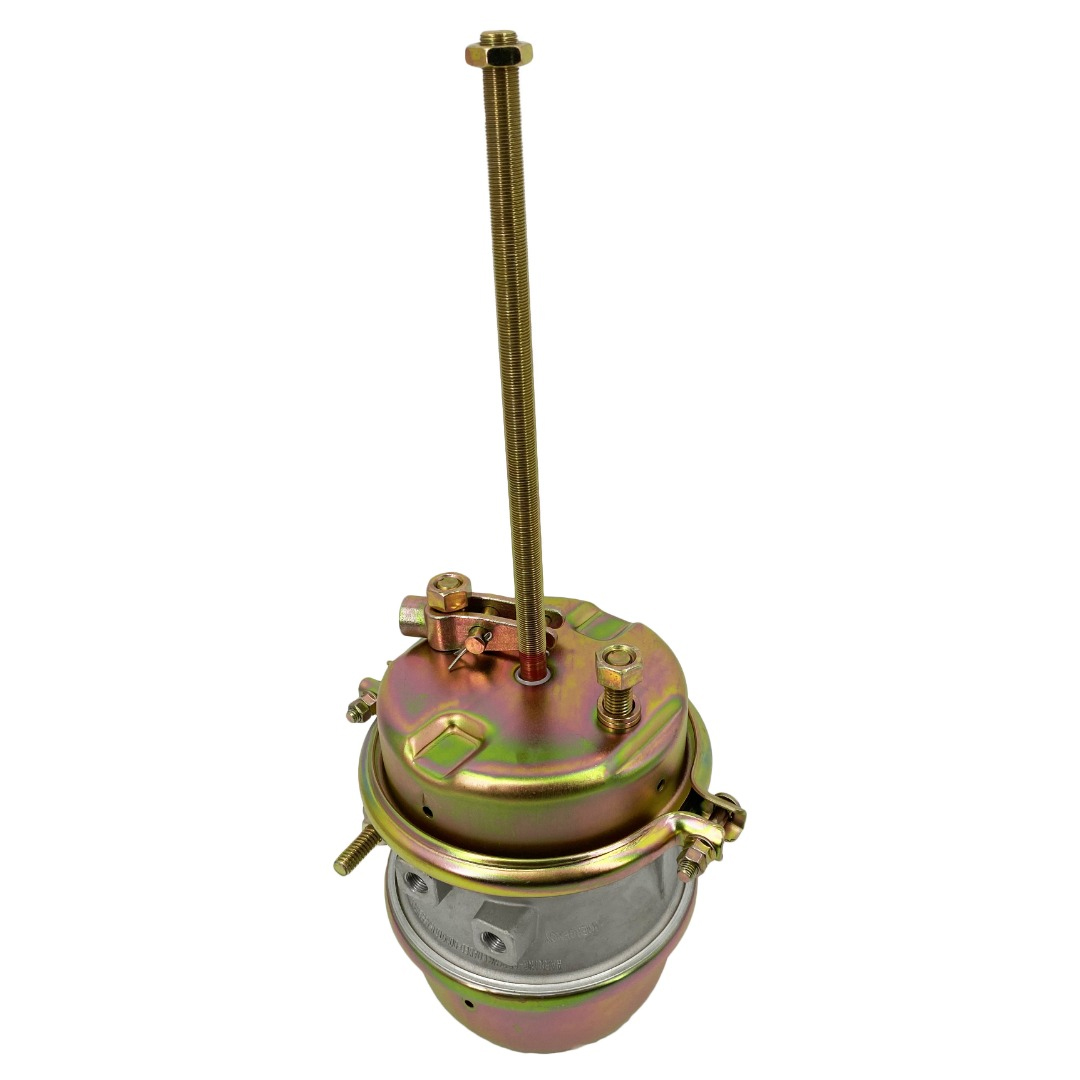

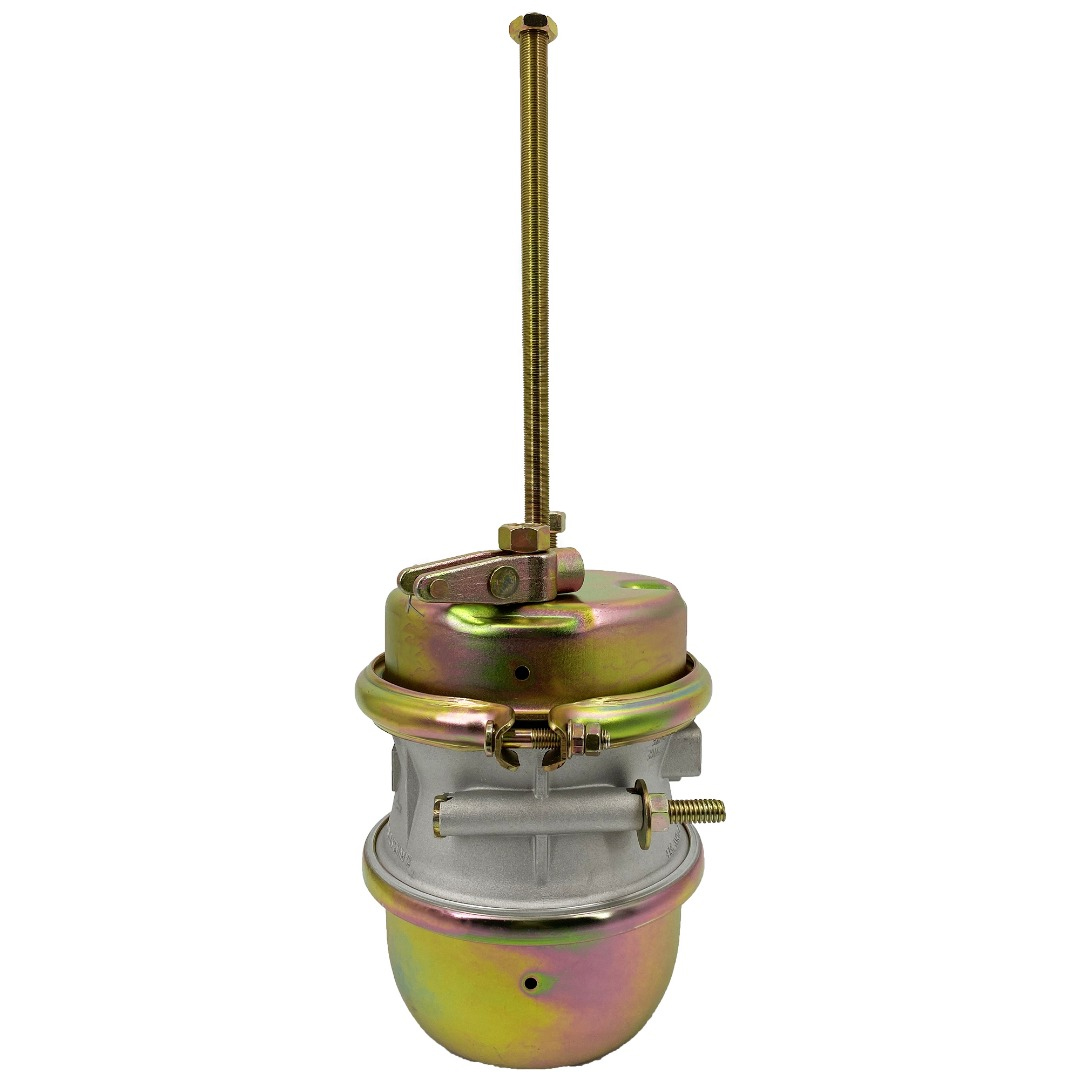

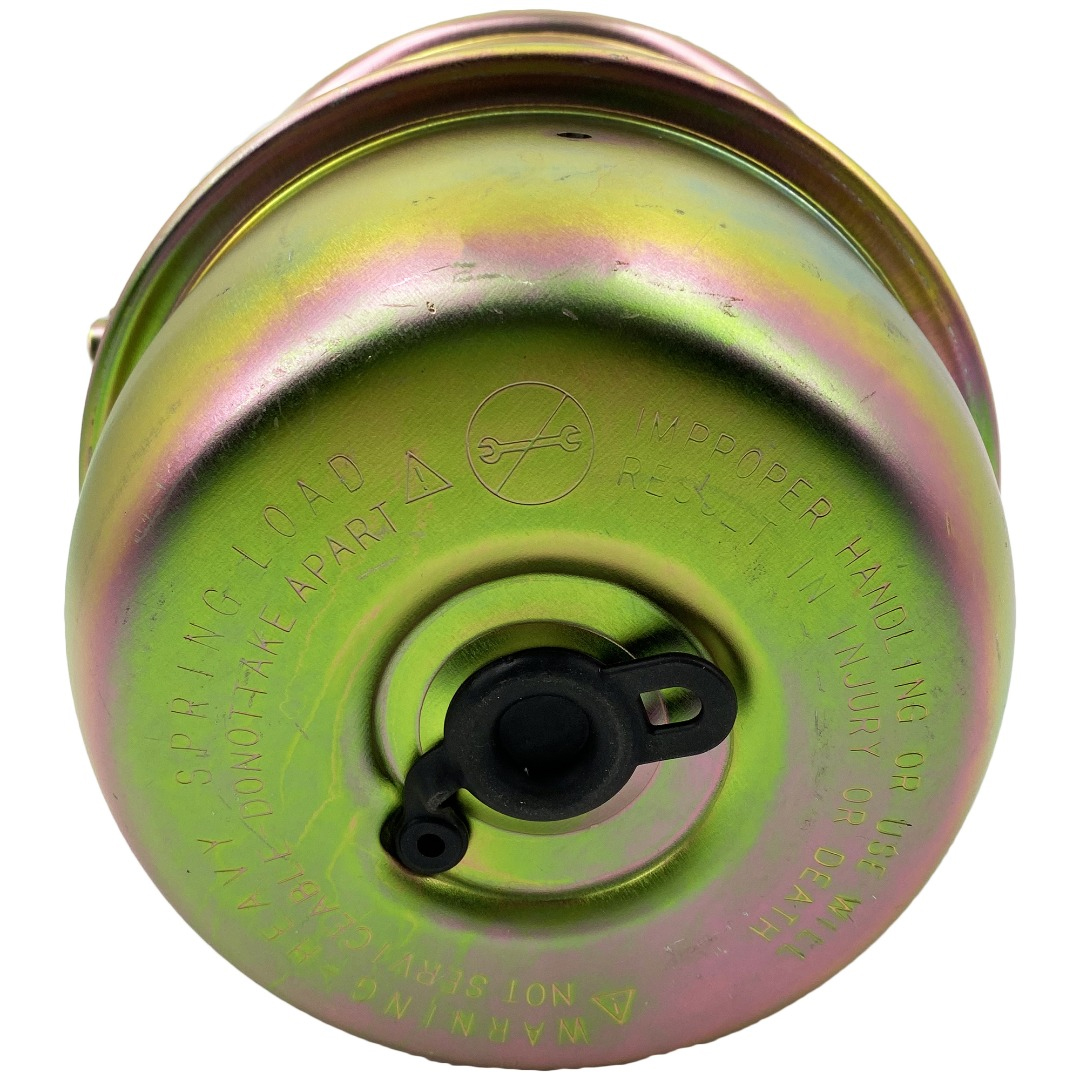

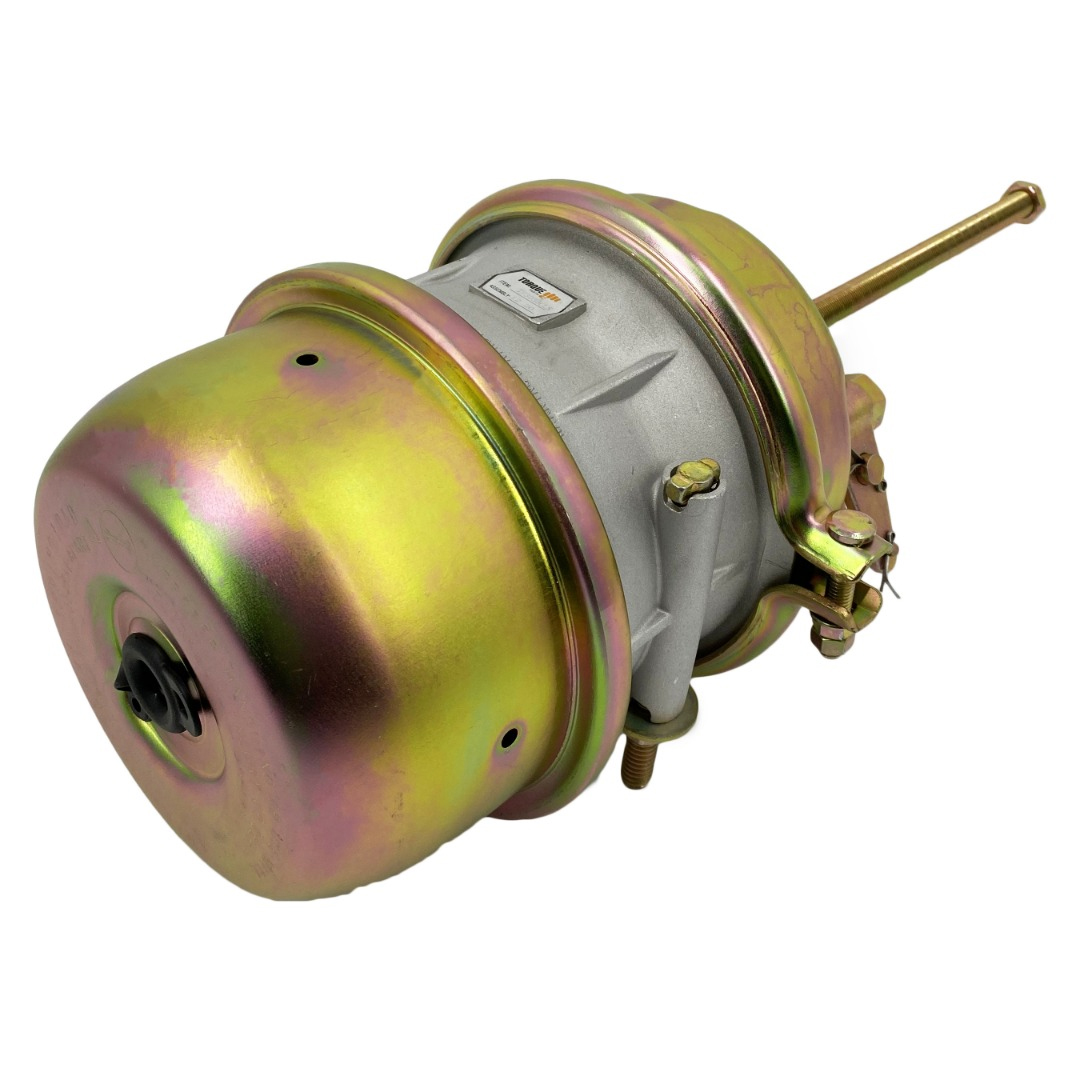

TR3030CLS | Long Stroke Air Brake Chamber Type 3030
Description : GC3030LR, 179.SB3030SL, NT3030ELS99, 3030054
Part Number : TR3030CLS
TR3030CLS | Long Stroke Air Brake Chamber Type 3030
Automann: | 179.SB3030SL |
Bendix: | NT3030ELS80, NT3030ELS99 |
Haldex: | GC3030L, LC3030L, GC3030LR |
Midland: | 3030054, MBI GC3030LR |
Watson and Chalin: | 12963 |
Actuator Type Size: | 3030 |
Stroke Type: | Long |
Available Stroke: | 3", 76mm |
Length from mounting bracket to end of Spring Housing: | 9-7/8", 251mm |
Length of Piggyback: | 7-3/8", 187mm |
Dimension at rolled Spring Housing flange: | 8-5/16", 211mm |
Dimension at Service Clampband: | 10-3/16" |
Pushrod Length from face of Service Housing: | 14" |
Weight: | 21.8 lbs. , 9.9 kg. |
